Quick Heat Recovery
New heater with internal sensor achieves 60W.
Easy to Use
High Insulation. Reliable 24V Output.
The heater is completely separated from the input power by the insulated transformer. And the 24V heater is safe to use for sensitive components.

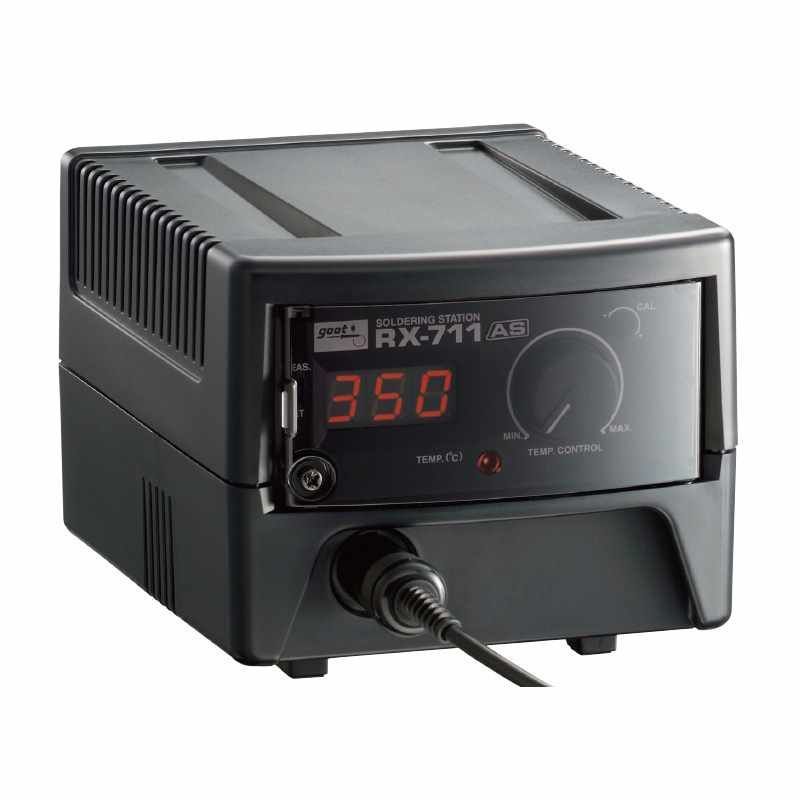

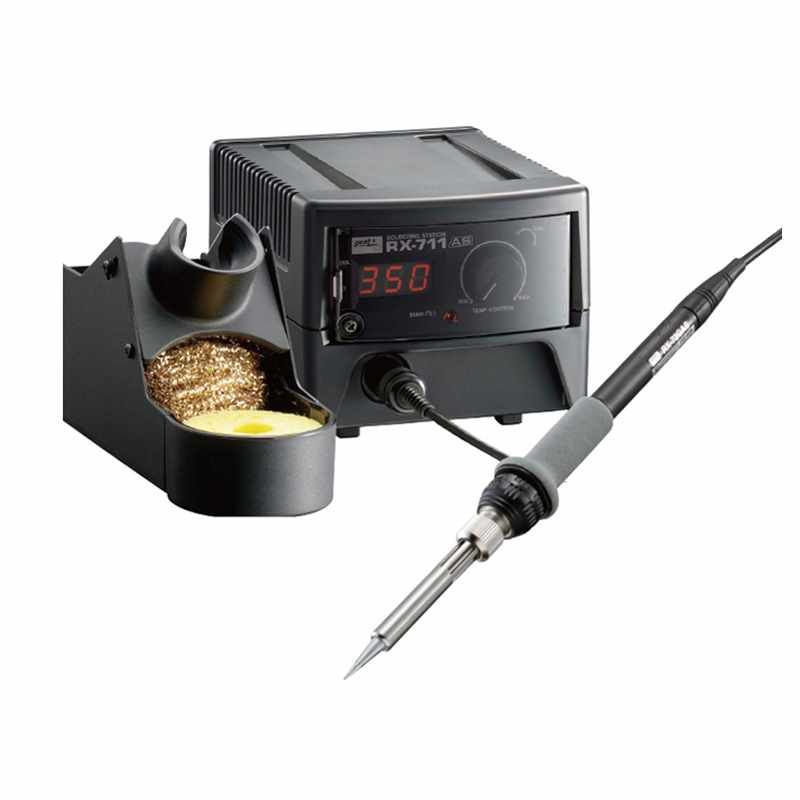

| Model | RX-711AS | |
|---|---|---|
| Voltage | 110V,120V,130V,220V,230V,240V AC 50/60Hz | |
| Power Consumption | 65W | |
| Power Cord Length | 1.2m | |
| Temperature Setting Range | 200–480°C | |
| Ripple temperature | ±5˚C (unloaded) | |
| Insulation Resistance | Over 100MΩ (500V DC) | |

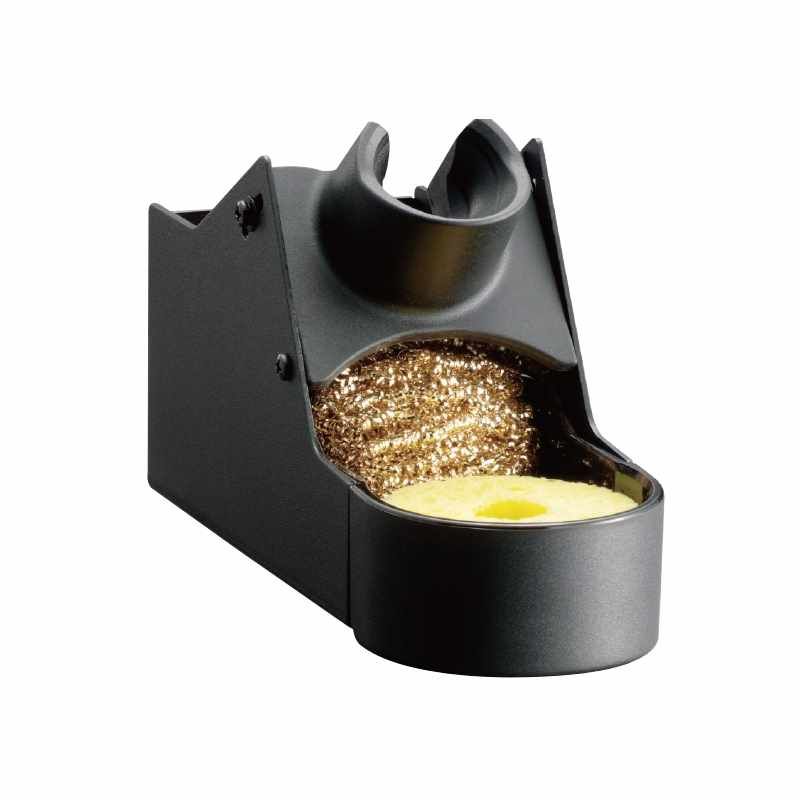

| Accessories | Soldering Iron Stand (ST-27 ),Soldering Iron Tip (PX-60RT-B) | |
| Output Voltage | 24V AC |
|---|---|
| Dimensions | 115(W) × 98(H) × 146(D)mm |
| Weight | 1.5kg |
| Voltage / Consumption | 24V AC / 60W |
|---|---|
| Ground Resistance | Less than 2Ω |
| Leak Voltage | Less than 2mV |

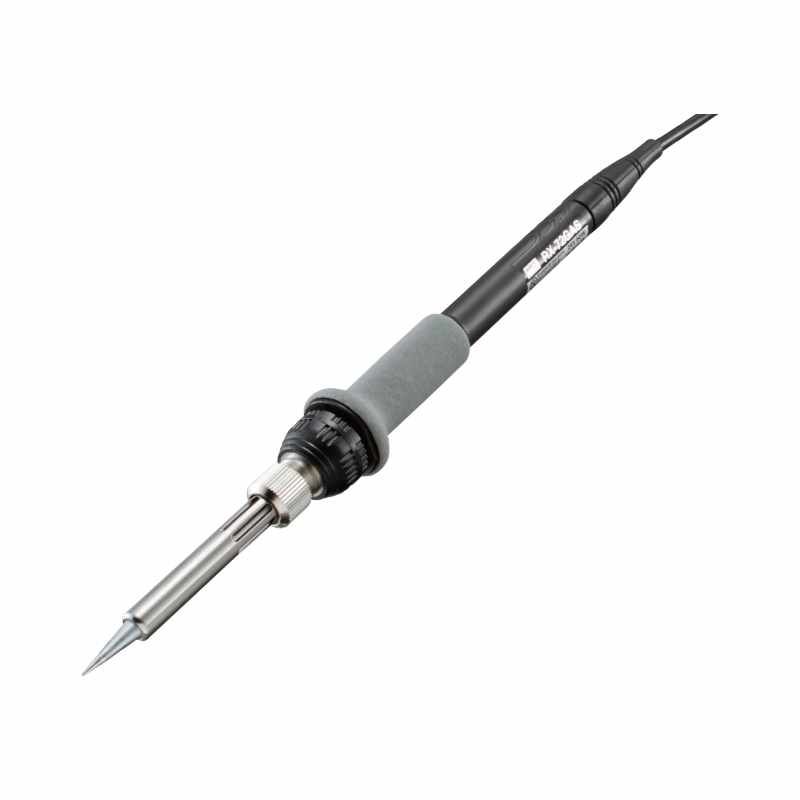

| Heater | Ceramic heater |
| Cord Length | 1.2m |
| Length | 197mm (with PX-60RT-B) |
| Weight | 44g (with PX-60RT-B) |
Equivalent to IPC/EIA J-STD-001C
*The length does not include the cord bushing. The weight does not include the cord.
