Descripción

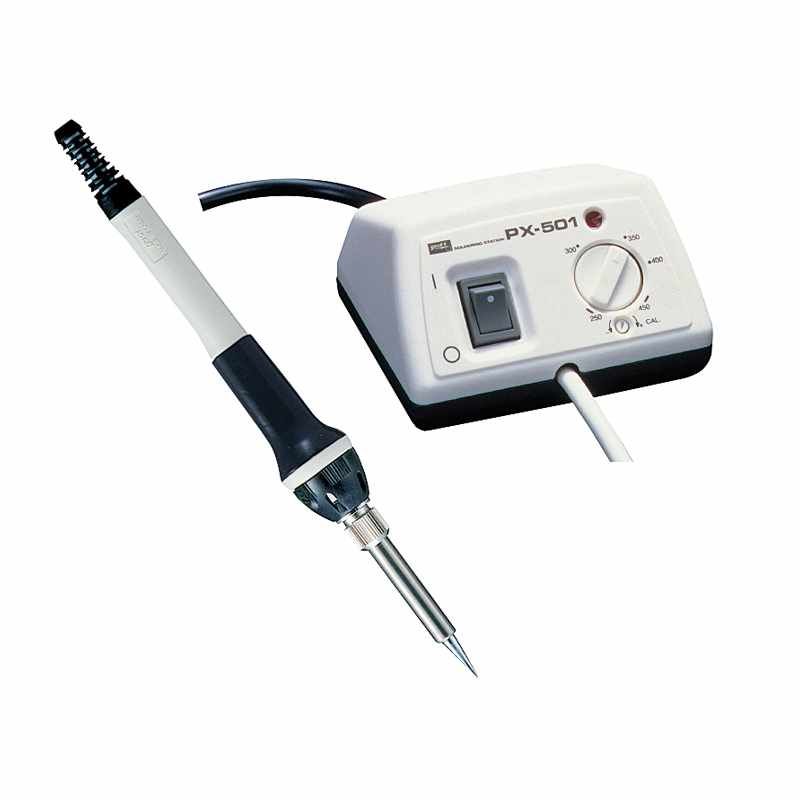

Specifications| Model | PX-501 |
|---|
| Voltage | 110V, 220–240V AC 50/60Hz |
|---|
| Power Consumption | 85W |
|---|
| Power Cord Length | 1.5m |
|---|
| Temperature Setting Range | 250–450°C |
|---|
| Ripple temperature | ±5˚C (unloaded) |
|---|
| Insulation Resistance | Over 100MΩ (500V DC) |
|---|
| Accessories | Soldering Iron Tip (PX-60RT-B) |
|---|

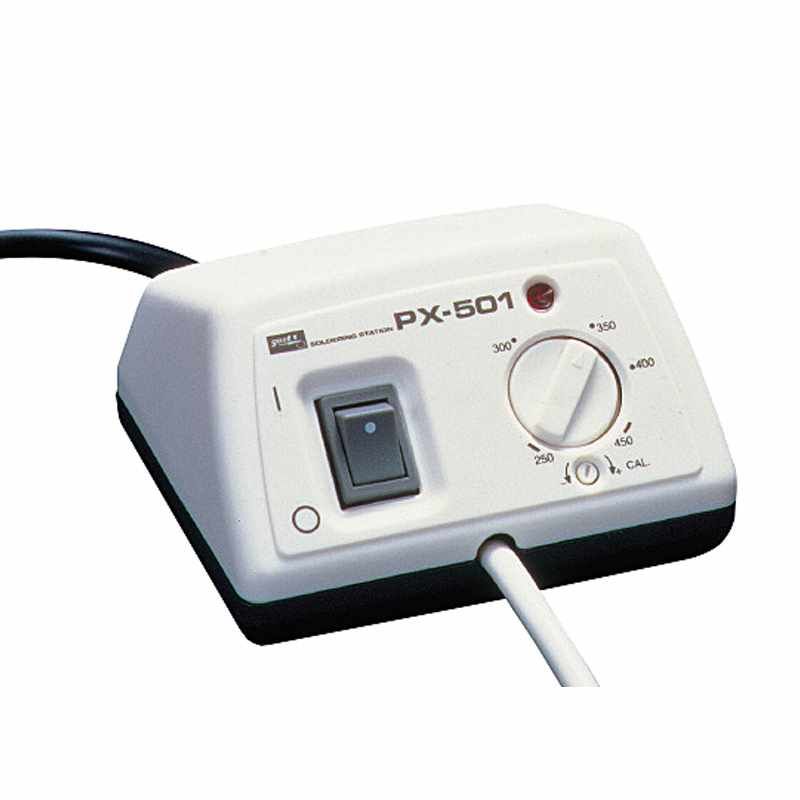

Control Unit| Output Voltage | 110V, 220–240V AC |
|---|
| Dimensions | 100(W) × 57(H) × 85(D)mm |
|---|
| Weight | 266g |
|---|
Soldering Unit| Voltage / Consumption | 110V, 220–240V AC /80W |
|---|
| Ground Resistance | Less than 2Ω |
|---|
| Leak Voltage | Less than 2mV |
|---|
| Heater | Ceramic heater |
|---|
| Cord Length | 1.2m |
|---|
| Length | 195mm (with PX-60RT-B) |
|---|
| Weight | 41g (with PX-60RT-B) |
|---|
*The length does not include the cord bushing. The weight does not include the cord.
